Sheaumann Laser社（旧 Axcel Photonics社）

シングルモードLD/LDモジュール

波長
(nm)		 出力
(mW)		 パッケージ・仕様書
785 80 5.6mm TO-Can
150 9mm TO-Can
300 9mm Tall TO-Can

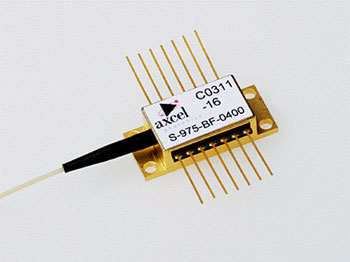

70 14-Pin Butterfly
808 100 9mm TO-Can
150 9mm TO-Can
70 14-Pin Butterfly
830 50 5.6mm TO-Can
100 9mm TO-Can
150 9mm TO-Can
300 9mm Tall TO-Can
70 14-Pin Butterfly
852 300 9mm Tall TO-Can
915 200 9mm TO-Can
300 9mm TO-Can
940 100 9mm TO-Can
200 9mm TO-Can
300 9mm TO-Can
650 9mm Tall TO-Can
200 14-Pin Butterfly
975 200 9mm TO-Can
300 9mm TO-Can
500 9mm TO-Can
650 9mm Tall TO-Can
980 300 14-Pin Butterfly
1064 200 9mm TO-Can
300 9mm TO-Can
650 9mm Tall TO-Can
200 14-Pin Butterfly


マルチモードLD/LDモジュール

波長
(nm)		 出力
(W)		 エミッタサイズ
(um)		 パッケージ・仕様書
785 1.5 100 CMC Cu-Submount
1 CMC Cu-Submount
2 CMC Cu-Submount
808 0.2 50 5.6 mm TO Can
0.5 50 5.5 mm TO Can
9mm TO Can
COS-C Mount
1 100 9 mm TO Can
2 100 9 mm TO Can
1 50 COS-C Mount
100 COS-C Mount
1.5 50 COS-C Mount
3 50 COS-C Mount
100 14 Pin Butterfly
4 200 COS-C Mount
5 COS-C Mount
6 COS-C Mount
8 400 COS-C Mount
10 COS-C Mount
830 1 50 9 mm TO Can
1 100 9 mm TO Can
1.5 50 COS-C Mount
1 COS-C Mount
1 100 COS-C Mount
2 COS-C Mount
915 0.5 50 9 mm TO Can
1 100 9 mm TO Can
0.5 50 5.6 mm TO Can
1.5 100 14 Pin Butterfly
1 COS-C Mount
1.5 COS-C Mount
2 COS-C Mount
3 COS-C Mount
940 1.5 100 9 mm TO Can
3 COS-C Mount
4 200 COS-C Mount
975 0.2 50 5.6 mm TO Can
0.5 5.6 mm TO Can
9 mm TO Can
3 100 14 Pin Butterfly
1 50 COS-C Mount
100 COS-C Mount
1.5 50 COS-C Mount
2 100 COS-C Mount
3 COS-C Mount
3 200 COS-C Mount
4 COS-C Mount
5 COS-C Mount
6 COS-C Mount
8 400 COS-Cmount
10 400 COS-Cmount
1064 1 100 9 mm TO Can
2 62.5 14 Pin Butterfly
1 100 COS-C Mount
2 COS-Cmount
3 COS-Cmount
