| 品番 |
対応デバイス |
RF周波数 |
主な機能 |
| 動作モード |
RFパワー |
|
6000 Series |
AOD, TF |
50-450MHz |
Configurable: 2 channel,
phase synchronized outputs,
multiplexing, and/or multi-tone output
★詳細はこちら |
|
フレキシブル |
15-20W |
|
64020-250-1ADMDFS-A |
AOD, TF,
特定のAOM |
20-250MHz |
Single channel DDS |
|
周波数の設定可 |
1.0W |
|
64020-200-2ADMDFS-A |
AOD, TF,
特定のAOM |
20-200MHz |
Single channel DDS |
|
周波数の設定可 |
2.0W |
|
97-02925-32 |
AOD, TF |
20-160MHz |
Single channel DDS |
|
周波数の設定可 |
0.4W |
|
97-03926-12 |
AOD, TF |
20-160MHz |
8 channel DDS |
|
周波数の設定可 |
3.2W |
|
SD020-200-5UC-4x1 |
TF |
20-200MHz |
Single or
multi-channel DDS |
| 周波数の設定可 |
5.0W |
|
A35xxx-S-1/50-p4k7u |
Fiber-Q,
AOM, AOFS |
40, 80,
110, 150, 200, 300MHz |
Analog and digital modulation |
| 周波数固定 |
0.5-5.0W |
|
MHPXXX-YYADM-A1 |
Fiber-Q,
AOM |
24-260MHz |
|
|
周波数固定 |
2-20W |
|
3910 Series |
Fiber-Q,
AOM, AOFS |
80-350MHz |
構成図は下記の通り |
|
周波数固定 |
0.5-8.0W |
|
MCX0XX-Y.YZC-MINx |
AOM, AOFS |
40-80MHz |
Ultra-compact size |
|
周波数固定 |
0.5-2.5W |
|
HP041-125ADG-A10 |
AOM |
40.68MHz |
Ge AO devices |
|
周波数固定 |
125W |
|
HP040-060-150ADG-A10-2X |
AOM |
40/60MHz |
Dual channel Ge Ao devices |
|
周波数固定 |
2x75W |
|
MQH0XX-YYDM-ZZZ |
AOQS, AOM |
24, 27.12,
40.68, 68, 80MHz |
Fixed/variable pulse width |
|
周波数固定 |
25-100W |
|
MQH0XX-YYDM-ZZZ-2S |
AOQS |
24, 27.12,
40.68, 68, 80MHz |
2 channel, fixed/cariable pulse width |
|
周波数固定 |
25-50W per
channel |
|
QC0XX-YYDC-ZZZ-AAV |
AOQS, AOM |
24, 27.12,
40.68, 68, 80, 110MHz |
Compact, low power,
fixed/variable pulse width |
|
周波数固定 |
2-24W |
|
3307 Series |
Fiber-Q, AOFS |
80-350MHz |
Analog and digital modulation |
|
様々な周波数に対応 |
1-4W |

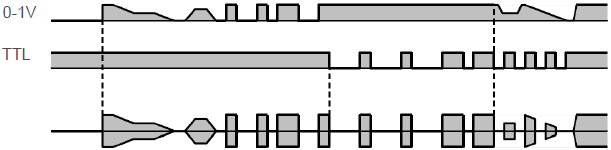

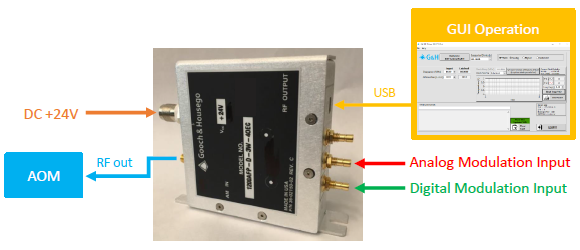

＜3910ドライバの出力・入力＞
|
